Feature:

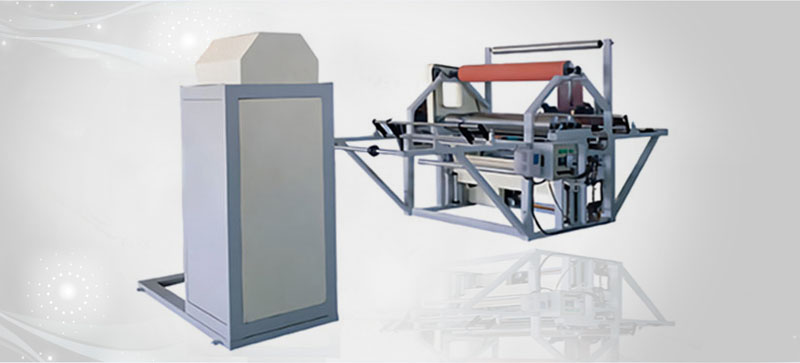

The epe foam sheet laminating machine uses hot air to thicken the two layers of epe foam sheet. Ztech Thickening Machine has been upgraded for more than 10 years.
It adopts one-key start function and automatic temperature, so that it adopts suction heating gun,
and the design brazier compound speed can reach up to 70 meters per min. It use pneumatic push-pull function.
Its advantages: saving labor; small investment in epe foam bonding; 2-3 days of sheet can be bonded so the epe foam sheet staying period is reduced to help reduce the stock.
Application
The thickened foamed sheets can increase the intensity and thickness and it is widely used for the packaging of electronic product,building intermediate layer,sound insulation,heat preservation,and so on.
Technical Parameters
|
Model |
ZT-1400L |
ZT-1600L |
ZT-2000L |
|
Max.Thickness(mm) |
100 |
100 |
100 |
|
Max.Width(mm) |
1400 |
16000 |
2000 |
|
Unwinder Max. Diameter(mm) |
1000 |
1000 |
1000 |
|
Rewinder Max. Diameter(mm) |
1000 |
1000 |
1000 |
|
Speed |
5-40m/min |
||
|
Heating style |
Gas Heating or Electricity Heating |
||
|
Total power |
3KW |
||
|
Power |
380V,50HZ,3 Phase |
||
|
Dimensions(L/W/H) |
6000*2500*18000mm |
6000*2800*18000mm |
6000*3100*18000mm |
|
Weight |
1T |
1.1T |
1.3T |
